A service mesh is a configurable infrastructure and network layer for microservices applications that enables efficient interaction between them and integrates all the functionality described above. A service mesh is normally implemented through a proxy instance, called asidecar, that is added to each service instance. Sidecars do not affect the application code and abstract the service mesh functionality away from the microservices. This allows developers to concentrate on developing and maintaining the application, while OPs can manage the service mesh in the distributed environment.
The most popular service meshes areLinkerd,Envoy, andIstio. In this tutorial, we’ll discuss Istio Service Meshlaunched by Google, IBM, and Lyftin 2017. Its architecture and features are discussed below.
Istio Service Mesh
Istiois a platform-independent service mesh that can run in a variety of environments including cloud, on-premise, Mesos, Kubernetes, and Consul. The platform allows creating a network of microservices with service-to-service authentication, monitoring, load balancing, traffic routing, and many other service mesh features described above. You can create the Istio service mesh for your microservices application by adding a special sidecar proxy that intercepts all network calls between your microservices and subjects them to Istio checks and user-defined traffic rules.

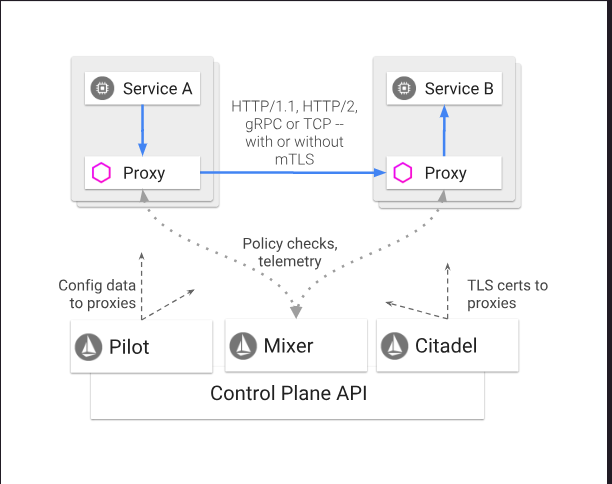

Two basic components of the Istio architecture include Data Plane and Control Plane (see the image below).
Data Plane
The data plane is based on a set of intelligentEnvoyproxies deployed as sidecars to the relevant Service inside Pod(s) managed by this Service. Istio leverages such features of Envoy as dynamic service discovery, load balancing, TLS termination, circuit breakers, HTTP/2 and gRPC proxies, health checks, staged rollouts with percentage-based traffic splits, fault injection, and telemetry.
Control Plane
Thecontrol planeconfigures and manages Envoy proxies to route traffic to microservices. It is also used to configureMixers. These general purpose policy and telemetry hubs can enforce access control and usage policies and collect metrics from proxies to guide their decisions. Mixers use request-level attributes extracted by proxies to create and manage their policy decisions.
In general, theControl Planefunctionality involves the following:
Automatic load balancing for HTTP, WebSocket, TCP traffic, and gRPC.
Fine-grained control of traffic behavior including rich routing rules, circuit breakers, retries, failovers, and fault injection. Istio makes it easy to set up A/B testing, canary rollouts, and staged rollouts with percentage-based traffic splits.
A policy layer with support for access controls, rate limits, and quotas.
Creation of metrics, logs, nd traces for all Ingress and Egress traffic within your cluster. Istio’s custom dashboard provides with valuable insights into the performance and health of your services.
Strong identity-based authentication and authorization, and encryption of service communication at scale to secure your applications.
In addition to Mixers discussed above, this functionality is implemented by the following Istio components:
Pilot. As the core component used for traffic management in Istio, Pilot configures and manages traffic routing and service discovery for Envoy sidecar, and it ensures resiliency through such failure recovery features as timeouts, retries, circuit breakers, among others.
Citadel. This is a security component of Istio that offers strong service-to-service and user authentication and ships with built-in identity and credentials management. Citadel can also be used to encrypt traffic in the Istio service mesh.
Galley. This is component that is responsible for validating user-created Istio API configuration on behalf of other Istio Control Plane components.
All these features make Istio a powerful infrastructure layer for microservices running in your Kubernetes cluster. Istio’s traffic management, security, access control, and failover management capabilities make it an indispensable component of modern cloud-native applications.
In what follows, we’ll guide you through installing Istio and its components in the local Minikube cluster. By the end of this tutorial, you’ll have Istio installed and configured on your infrastructure and understand how to use basic traffic routing capabilities of this service mesh. Let’s get started!
Tutorial
In order to test the examples presented below, the following prerequisites are required:
A running Kubernetes cluster. See Supergiant documentation for more information about deploying a Kubernetes cluster with Supergiant. As an alternative, you can install a single-node Kubernetes cluster on a local system using Minikube.
A kubectl command line tool installed and configured to communicate with the cluster. See how to install kubectl here.
Note: all examples in this tutorial assume that you are using Minikube cluster deployed on a local machine. To run Istio locally, you’ll need Minikube, version 0.28.0 or later.
Step 1: Prepare Minikube for Istio
In order to install Istio’s control plane add-ons and other applications for telemetry, Istio documentation recommends starting Minikube with 8192 MB of memory and 4 CPUs :
For Kubernetes version > 1.9, you should start Minikube with the following configuration (see the code below).
Note: Please, replace - -vm-driver=your_vm_driver_choice with your preferred VM driver option for Minikube (e.g virtualbox). For available VM drivers for Minikube, consult the official Minikube documentation.
Upon running this command, Minikube will be configured for Istio installation.
After starting Minikube you might also consider removing taints applied to Minikube beceause they can affect Istio Pods scheduling. To remove taints, run the following command:
The first thing you need to do to install Istio on Minikube is to get the latest release of Istio containing various CRDs, YAML manifests, and Istio command line tools. To get the latest release of Istio for MacOS and Linux, run the following command:
curl -L https://git.io/getLatestIstio | sh -
Next, you need to go to the Istio package directory. For example, if the downloaded package is named istio-1.0.5 run:
cd istio-1.0.5
If you run ls command inside the package, you’ll see the following assets:
Installation .yaml files for Kubernetes in the install/ directory.
Sample applications in the samples/ folder. We’ll use one of these applications later to demonstrate Istio traffic management features.
The bin/ directory with the istioctl client binary. We’re going to use this binary to manually inject Envoy as a sidecar proxy and to create routing rules and policies.
The istio.VERSION configuration file.
To use the istioctl client, you have to add its path to the PATH environment variable. On macOS and Linux, run:
export PATH=$PWD/bin:$PATH
The installation directory stores Istio’s Custom Resource Definitions used to install Istio. CRDs allow extending the Kubernetes API with your custom resources. Istio extensively uses CRDs to create its own API on top of Kubernetes. We can install Istio’s CRDs by running the following command:
customresourcedefinition.apiextensions.k8s.io "virtualservices.networking.istio.io" created
customresourcedefinition.apiextensions.k8s.io "destinationrules.networking.istio.io" created
customresourcedefinition.apiextensions.k8s.io "serviceentries.networking.istio.io" created
customresourcedefinition.apiextensions.k8s.io "gateways.networking.istio.io" created
customresourcedefinition.apiextensions.k8s.io "envoyfilters.networking.istio.io" created
customresourcedefinition.apiextensions.k8s.io "policies.authentication.istio.io" created
customresourcedefinition.apiextensions.k8s.io "meshpolicies.authentication.istio.io" created
customresourcedefinition.apiextensions.k8s.io "httpapispecbindings.config.istio.io" created
customresourcedefinition.apiextensions.k8s.io "httpapispecs.config.istio.io" created
....
In several seconds, multiple Istio’s CRDs will be committed to the kube-apiserver. Let’s move on!
Step 3: Install Istio’s Core Components
There are several options for installing Istio’s core components described in the Istio’s Quick Guide for Kubernetes. We will install Istio with default mutual TLS authentication between sidecars, which is enough for demonstration purposes. In the production environment, however, you should opt for installing Istio using the Helm chart, which allows for more control and customization of Istio in your Kubernetes cluster.
To install Istio with the default mutual TLS authentication between sidecars, run
Awesome! You have Istio and its core components like Pilot, Citadel, and Envoy installed in your Kubernetes cluster. We are ready to use Istio to create a service mesh!
Step 4: Deploy Bookinfo Application
Now that Istio and its core components are installed, we will demonstrate how the service mesh works using the Bookinfo sample application from the package’s /samples folder. The Bookinfo application displays book information similarly to catalog entries in online bookstores. Each book entry features a book description, book meta details (ISBN, page count), and a few book reviews (with or without ratings).
The Bookinfo is a typical example of the microservices application that screams to be managed with Istio.
Why is this so? The app is broken into four separate microservices (productpage, details, reviews, and ratings), each written in a different programming language. The “productpage” microservice is written in Python; the “details” microservices — in Ruby; the “reviews” microservice — in Java; and the “ratings” microservice — in Node.js. In addition, there are three versions of the reviews microservice. The versions differ in how they display ratings and whether they call the ratings service. Managing this homogeneity definitely requires a service mesh that can connect loosely coupled microservices together and route traffic between different versions of the same microservice.
To apply service mesh capabilities to the Bookinfo app, we don’t need to change anything in its code. All we need to do is to enable the Istio environment by injecting Envoy sidecars alongside each microservice described above. Once injected, each Envoy sidecar will intercept incoming and outgoing traffic to the microservices and provide hooks needed for the Istio Control Plane (see the blog’s intro) to enable traffic routing, load balancing, telemetry, and access control for this application.
Before deploying the Bookinfo app, let’s first look at the contents of thebookinfo.yaml file that contains all manifests:
# Copyright 2017 Istio Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
The manifests above contain one Deployment and one Service for each microservice of the app and for all three versions of the reviews microservice. To install the Bookinfo app, we will be using manual sidecar injection that adds an Envoy sidecar exposing Istio capabilities to each microservices of the app. We should use the istioctl kube-inject command to manually modify the bookinfo.yaml file before creating the Deployments:
Alternatively, you can deploy the app by enabling the automatic sidecar injection . In this case, you should label the default namespace with istio-injection=enabled
Note: Automatic sidecar injection requires Kubernetes 1.9 or later.
Both commands will launch four microservices and start all three versions of the reviews service. In a realistic scenario, you would need to deploy new versions of a microservice over time instead of deploying them simultaneously.
Now, let’s see if the Bookinfo Services were successfully created:
Cool! The Bookinfo app was successfully deployed. Now, let’s configure the Istio Gateway to make the app available from outside of your cluster.
Step 5: Enable Istio Gateway
An Istio Gateway configures a load balancer for HTTP/TCP traffic at the edge of the service mesh and enables Ingress traffic for an application. Essentially, we need an Istio Gateway to make our applications accessible from outside of the Kubernetes cluster. After enabling the gateway, users can also use standard Istio rules to control HTTP(s) and TCP traffic entering a Gateway by binding aVirtualService to it.
We can define the Ingress gateway for the Bookinfo application using the sample gateway configuration located in thesamples/bookinfo/networking/bookinfo-gateway.yaml . The file contains the following manifests for the Gateway and VirtualService:
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: bookinfo-gateway
spec:
selector:
istio: ingressgateway # use istio default controller
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- "*"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
exact: /productpage
- uri:
exact: /login
- uri:
exact: /logout
- uri:
prefix: /api/v1/products
route:
- destination:
host: productpage
port:
number: 9080
The Gateway manifest simply creates an Istio gateway for all incoming HTTP traffic for all hosts. To make the Gateway work for our Bookinfo application, we also bind a VirtualService with a list of all microservices routes to the Gateway.
In essence, a VirtualService is Istio’s abstraction that defines a set of rules that control how requests for a given microservice are routed within an Istio service mesh. We can use virtual services to route requests to different versions of the same microservice or to a completely different microservice than was requested. We bound a VirtualService to a given Gateway by specifying the gateway’s name in the gateways field in the configuration (see the manifest above). Now that you understand how Gateways and VirtualServices work, let’s enable them by running the following command:
gateway.networking.istio.io "bookinfo-gateway" created
virtualservice.networking.istio.io "bookinfo" created
Confirm that the gateway has been created by running the following command:
$ kubectl get gateway
NAME AGE
bookinfo-gateway 22s
Step 6: Set the INGRESS_HOST and INGRESS_PORT Variables for Accessing the Gateway
The next step is setting the INGRESS_HOST and INGRESS_PORT variables for accessing the gateway. First, you need to determine if your cluster is running in an environment with external load balancers. To check this, run the following command:
$ kubectl get svc istio-ingressgateway -n istio-system
If the EXTERNAL-IP value is <pending> or <none> , the environment does not provide an external load balancer for the Ingress gateway. This is what we expect when running this tutorial on Minikube. In this case, you can access the Istio Gateway using the Service’s NodePort.
If you don’t have external load balancers, set the Ingress ports running the following command:
$ export INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].nodePort}')
$ export SECURE_INGRESS_PORT=$(kubectl -n istio-system get service istio
Setting the ingress IP depends on the cluster provider. For the Minikube, we use:
export INGRESS_HOST=$(minikube ip)
Let’s see if the environmental variable was created:
printenv GATEWAY_URL
192.168.99.100:31380
If you have an environment with external load balancers, you should follow the instructions here.
Awesome! Let’s now confirm that the Bookinfo application is running:
Because we used the Istio Gateway and the VirtualService bound to it, you can also access the Bookinfo application in your browser by visitinghttp://$GATEWAY_URL/productpage . Here is how it looks like:
Try to refresh the Product Page several times, and you’ll notice that different versions of reviews microservice are displayed. One version has no stars, and other one have stars with different colors (red and black):
Step 7: Set Default Destination Rules
The first thing we need to do to implement version routing with istio is to define subsets in destination rules.
Subsets are actually different versions of the application binary. These can be different API versions of the app or iterative changes to the same service deployed in different environments (staging, prod, dev, etc.). Subsets can be used for various scenarios such as A/B testing and canary rollouts. The choice of version to display can be decided based on headers, URL, and weights assigned to each version (see our blog about traffic splitting in Traefik for more information about traffic weights).
In its turn, a destination refers to the network addressable service to which the request/connection will be sent after processing a routing rule. The service in the service registry (e.g., Kubernetes Services, Consult services) to which the traffic routed should be referred in the destination.host field.
In what follows, we create default destination rules for the Bookinfo services. The destination rules manifest looks as follows:
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: productpage
spec:
host: productpage
trafficPolicy:
tls:
mode: ISTIO_MUTUAL
subsets:
- name: v1
labels:
version: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: reviews
spec:
host: reviews
trafficPolicy:
tls:
mode: ISTIO_MUTUAL
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
- name: v3
labels:
version: v3
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: ratings
spec:
host: ratings
trafficPolicy:
tls:
mode: ISTIO_MUTUAL
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
- name: v2-mysql
labels:
version: v2-mysql
- name: v2-mysql-vm
labels:
version: v2-mysql-vm
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: details
spec:
host: details
trafficPolicy:
tls:
mode: ISTIO_MUTUAL
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
---
Since we deployed Istio with default mutual TLS authentication, we need to execute the following command:
destinationrule.networking.istio.io "productpage" created
destinationrule.networking.istio.io "reviews" created
destinationrule.networking.istio.io "ratings" created
destinationrule.networking.istio.io "details" created
You’ll need to wait a few seconds for the destination rules to be enabled. Then, you can display the rules with the following command:
$ kubectl get destinationrules -o yam
Step 8: Implement Request Routing
Now, we are ready to change the default round-robin behavior for traffic routing. In this example, we will route all traffic to v1 (version 1) of the ratings service. Then, we will route traffic based on the value of an HTTP request header.
In order to route only to one version, we need to apply newVirtualServices that set the default version for the microservices. In this example, our virtual service will route to the v1 of all microservices in the application. The manifest looks as follows:
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: productpage
spec:
hosts:
- productpage
http:
- route:
- destination:
host: productpage
subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: reviews
spec:
hosts:
- reviews
http:
- route:
- destination:
host: reviews
subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: ratings
spec:
hosts:
- ratings
http:
- route:
- destination:
host: ratings
subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: details
spec:
hosts:
- details
http:
- route:
- destination:
host: details
subset: v1
---
As you see, we have four VirtualServices for each microservice: details, ratings, reviews, and productpage. Each virtual service routes traffic to the v1 of the microservice. This is specified in the destination property that points to a specific subset defined in the destination rules we created above. For example
- destination:
host: details
subset: v1
To apply the VirtualServices, run the following command and wait a few seconds:
virtualservice.networking.istio.io "productpage" created
virtualservice.networking.istio.io "reviews" created
virtualservice.networking.istio.io "ratings" created
virtualservice.networking.istio.io "details" created
Now, you can display the defined routes with the following command
kubectl get virtualservices -o yaml
You can also see the corresponding subset definitions by running:
$ kubectl get destinationrules -o yaml
Awesome! We have configured Istio to route to the v1 of the Bookinfo microservices. You can test the configuration by refreshing the /product page several times. You’ll see that each time you refresh the app the same version of reviews microservice with no rating stars is displayed no matter how many times you refresh. This implies that the traffic routing is configured to route all traffic to the version reviews:v1 which does not have the star rating service.
Step 9: Enabeg User-Based Routing
In the next example, we will implement a user-based traffic routing. Requests from a specific user will be routed to a specific service version. For example, all traffic from John will be routed to the service reviews:v2 , and all traffic from the user Mary will be routed to reviews:v1.
We will implement this functionality by adding a custom end-user header to all outbound HTTP requests to the reviews service.
Let’s take a look at the virtual service manifest to understand how this works:
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: reviews
spec:
hosts:
- reviews
http:
- match:
- headers:
end-user:
exact: john
route:
- destination:
host: reviews
subset: v2
- match:
- headers:
end-user:
exact: mary
route:
- destination:
host: reviews
subset: v3
- route:
- destination:
host: reviews
subset: v1
This manifest checks the request header and if its name is “end-user” and the contents matches “john,” and then the request is routed to the reviews:v2 version. If the request header matches “mary,” all requested are routed to the reviews:v3. In all other cases, the requests are routed to the first version.
Let’s confirm that the rules have been applied. First, log in to the Bookinfo app as john (use random password) and refresh the browser. You’ll see that black stars ratings appear next to each review no matter how often you refresh the browser. Next, log in as mary . Now, if you refresh the page, you’ll see red star rating displayed by the v2 of the reviews microservice. Finally, if you log in as any other user or don’t log in at all, the v1 of the reviews microservice with no ratings will be displayed. It’s as simple as that! We have successfully configured Istio to route traffic based on user identity.
Step 10: Clean Up
Now, as the tutorial is over let’s clean up after ourselves:
